Wireless Battery Management System (Electric Vehicle/Energy Storage)



The Simple Solutions Inclusive Wireless Battery Management System is comprised of three main components, the Master, the Cell/Balance boards, and the user interface.  The Cell/Balance boards collect voltage and temperature information from each battery cell in a battery pack and wirelessly transmit this data back to the Master.  The Master collects all of this data, controls contactors and relays and communicates with other subsystems, while outputting information to the User Interface.  The User Interface is a touchscreen device that displays the information collected by the Master and allows the user to make changes to the system.



Wireless Master BMS Unit



● With optional touch screen color LCD Display

● CAN 2.0b Communication

● USB interface for updating firmware and
connecting to terminal

● Designed to interface with VCU and
overlapping VCU functions to facilitate
prototyping new systems.

● Inputs
o Key On (12 V)
o Charger On (12 V)
o *Program 1(Charger / Cooling)(12V)
o *Program 2 (12 V)
o Inductor Pickup (analog 0-­5 V)
o 12 Volt Monitor (analog 0­-15 V)

● Output (12 V 300ma)
o *Limp Home
o *Stop Driving
o *Stop Charging

● Relay Drivers (Drives +12 volt 10 AMP) user
needs to fuse properly
o *Pre­Charge user needs to fuse properly
o *Charge user needs to fuse properly
o *Programmable 1 (e.g. DCDC) user needs
to fuse properly
o *Programmable 2 (e.g. cooling system)
user needs to fuse properly

● Special Features
o *micro SD Card writer for battery / BMS
historical information.
o Optional bluetooth module

Download Whitepaper

MasterBoard - Products - Simple Solutions Inclusive Custom BMS Services & Electric Vehicle Prototyping and Consulting We provide superior lithium ion battery solutions

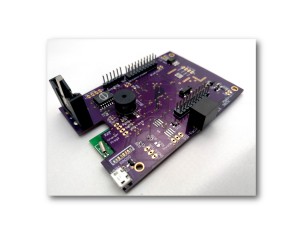

Wireless Battery Management System Master Board

Click image to enlarge

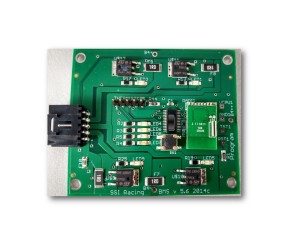

Wireless BMS Cell Monitor / Balance Boards

● Small footprint 68mm x 60mm (2.7” x 2.4”).

● Monitors 2­-4 cells.

● Provides constant current balancing.

● Designed to work with multiple chemistry batteries. Tested on lithium iron phosphate, lithium iron titanate, and lithium manganese batteries.

● Radio link (2.4 ghz) to Master BMS

● Low parasitic current draw (tested 300 ­- 500 ua (0.3 ­- 0.5 ma) = 2.7 -­ 4.4  amp/hr per year).

● Multiple temperature sensor inputs in addition to one on the PCB.

● Multiple and redundant protection circuits.

● Used to prototype wheelchair lithium ion battery solution.

Download Whitepaper

ModuleBoard - Products - Simple Solutions Inclusive Custom BMS Services & Electric Vehicle Prototyping and Consulting We provide superior lithium ion battery solutions

Click image to enlarge

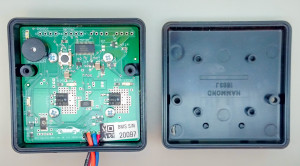

Medical Grade Battery Management System



The Simple Solutions Inclusive Medical Grade Battery Management System had been FDA certified and brings the ethos of Quality and Affordability to the Medical Device marketplace .





● Part of an FDA certified medical device

● Small footprint 59 mm x 59 mm (2.33” x 2.33”)

● Provides constant current balancing.

● Designed to work with multiple battery chemistries

● Generate low battery and critical battery signals.

● Low parasitic current draw (tested 300 ­- 500 ua (0.3 ­- 0.5 ma) = 2.7 -­ 4.4  amp/hr per year).

● Multiple temperature sensor inputs in addition to one on the PCB.

● Multiple and redundant protection circuits.



Download Whitepaper

SSI Medical Battery Management

SSI Medical Battery Management
